รายละเอียดสินค้า:
การชำระเงิน:
|
| สีของฉนวน: | สีแดง, เหลือง, เขียว, ขาว, ดำ, สีเทา, brwon, สีเหลือง/สีเขียว | ตัวอย่าง: | มี |
|---|---|---|---|
| พื้นที่ของตัวนำ: | 0.50mm2 ถึง 400mm2 | ทดสอบ voltag: | 2500V/5 นาที |
| ประเภทตัวนำ: | ตัวนำทองแดงที่เป็นของแข็ง (Class1) ตัวนำทองแดงที่ควั่น (Class2) | มาตรฐาน: | IEC60227*3 |
| บริษัท: | กลุ่มเซิงหัว | ยี่ห้อ: | เอส เคเบิล |
| เน้น: | PVC Insulation Wire Cable,Cable PVC Insulation Wire,Colored Single Wire Cable |
||

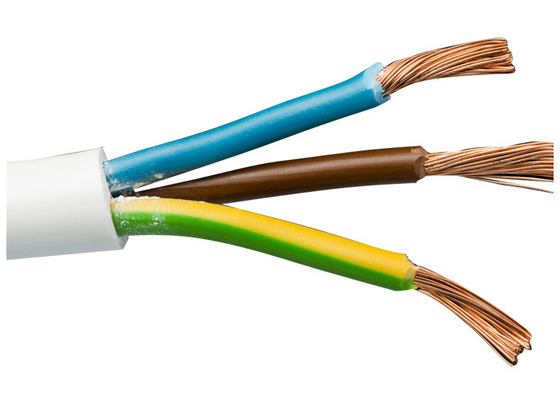

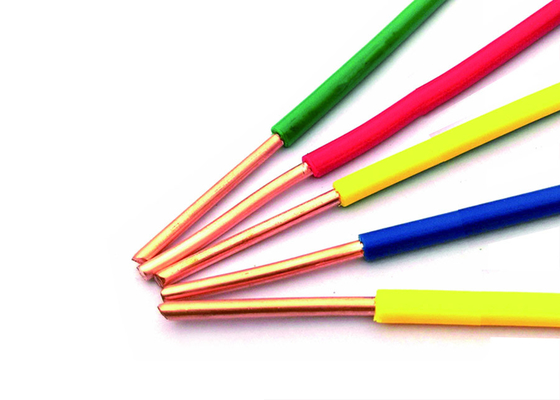

Colored Single Wire Cable PVC Insulation Wire 70℃ Max Conductor Temperature
Shanghai Shenghua Cable (Group) Co., Ltd.—a Top 500 Chinese manufacturer with certifications spanning CE, RoHS, CCC, and KEMA—delivers unmatched reliability with its IEC 60227-certified Single-Core PVC Cable. Designed for fixed installations in dry environments, this cable combines rigorous engineering, safety compliance, and versatility to power residential, commercial, and industrial applications worldwide.
Key Performance Data (BV 450/750V Series):
| Conductor (mm²) | Max. DC Resistance (Ω/km) | Diameter (mm) | Weight (kg/km) |
|---|---|---|---|
| 1.5 | 12.1 (Cu) | 3.3 | 21.6 |
| 10 | 1.83 (Cu) | 6.4 | 119 |
| 185 | 0.0991 (Cu) | 23.3 | 1810 |
| Full range: 0.5mm² to 400mm² |
Critical Features:
Descriptions
Single-core non-sheathed cables with rigid conductor for general purposes
Code designation: 60227 IEC 01 (International), BV (China), H07V-U(VDE)
Constructions
① Conductor: Plain circular solid copper conductor, comform to IEC 60228 class 1
③ Conductor: Plain circular stranded copper conductor, comform to IEC 60228 class 2
② Insulation: PVC/C
Applications
In dry rooms, apparatus switch and distribution boards, for fixed installation in conduits, over and under plaster and on insulated supports over plaster. Direct laying in plaster is not permitted.
Standards
International: IEC 60227
China: GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 450/750 V
Max. Conductor Temp. in normal use: 70℃
Min. Bending Radius: 4 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request
Specifications
BV300/500V
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight | Max. D.C Resistance of Conductor (20 ℃)Ω /km |
| mm2 | mm | mm2 | kg/km | Ω /km |
| 0.5 | 1/0.80 | 2.3 | 8.5 | 36.0 |
| 0.75(A) | 1/0.97 | 2.5 | 11.1 | 24.5 |
| 0.75(B) | 7/0.37 | 2.6 | 12.0 | 24.5 |
| 1.0(A) | 1/1.13 | 2.7 | 13.9 | 18.1 |
| 1.0(B) | 7/0.43 | 2.8 | 15.0 | 18.1 |
BV / BLV (BV-105) 450/750V
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight | Max. D.C Resistance of Conductor (20 ℃)Ω /km | ||
| mm2 | mm | mm2 | kg/km | Ω /km | ||
| Copper | Aluminium | Aluminium | Copper | |||
| 1.5(A) | 1/1.38 | 3.2 | 20.3 | 12.1 | ||
| 1.5(B) | 7/0.52 | 3.3 | 21.6 | 12.1 | ||
| 2.5(A) | 1/1.78 | 3.9 | 31.6 | 17 | 11.8 | 7.41 |
| 2.5(B) | 7/0.68 | 4.0 | 34.8 | 7.41 | ||
| 4(A) | 1/2.55 | 4.4 | 47.1 | 22 | 7.39 | 4.61 |
| 4(B) | 7/0.85 | 4.6 | 50.3 | |||
BV/BLV(BV-105) 450/750V
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight | Max. D.C Resistance of Conductor (20 ℃)Ω /km | ||
| mm2 | mm | mm2 | kg/km | Ω /km | ||
| Copper | Aluminium | Aluminium | Copper | |||
| 6(A) | 7/0.85 | 5.0 | 50.3 | 29 | 4.91 | 3.08 |
| 6(B) | 7/1.04 | 5.2 | 71.2 | 29 | 4.91 | 3.08 |
| 10 | 7/1.35 | 6.4 | 119 | 62 | 3.08 | 1.83 |
| 16 | 7/1.70 | 7.8 | 179 | 78 | 1.91 | 1.15 |
| 25 | 27/2.04 | 9.7 | 281 | 118 | 1.20 | 0.727 |
| 35 | 27/2.52 | 10.9 | 381 | 156 | 0.868 | 0.524 |
| 50 | 19/1.78 | 12.8 | 521 | 215 | 0.641 | 0.387 |
| 70 | 19/2.14 | 14.4 | 734 | 282 | 0.443 | 0.268 |
| 95 | 19/2.52 | 17.1 | 962 | 385 | 0.320 | 0.193 |
| 120 | 37/2.03 | 18.8 | 1180 | 431 | 0.253 | 0.153 |
| 150 | 37/2.25 | 20.9 | 1470 | 539 | 0.206 | 0.124 |
| 185 | 37/2.52 | 23.3 | 1810 | 666 | 0.164 | 0.0991 |
| 240 | 61/2.25 | 26.6 | 2350 | 857 | 0.125 | 0.0754 |
| 300 | 61/2.52 | 29.6 | 2930 | 1070 | 0.100 | 0.0601 |
| 400 | 61/2.85 | 33.2 | 3870 | 1390 | 0.0778 | 0.0470 |
